The RLink Lite is a versatile diagnostic tool, empowering users to achieve OE-level diagnostics for a wide range of vehicles with a single device. Featuring a user-friendly 5-inch LCD touchscreen, this diagnostic device operates smoothly. Serving as an OE software VCI box, the RLink Lite facilitates seamless diagnostics, programming, and coding for renowned car brands such as GM, Ford, Nissan, BMW, VAG, Porsche, and more.
Compliant with three major automotive industry standards—D-PDU, J2534, and RP1210—the RLink Lite ensures extensive vehicle coverage with a single device. Simplify your diagnostic process and elevate your capabilities with the RLink Lite, the premier choice for all your OEM diagnostic needs.

FEATURES

OE-Level Diagnostics Within Reach

Wondering how to achieve OE-level vehicle diagnostics without breaking the bank? Look no further than RLink Lite, the cost-effective VCI box designed as an alternative to various OEM diagnostic devices. With its exceptional compatibility, RLink Lite seamlessly conducts original equipment-level diagnostics, programming, and coding jobs, making it the go-to tool for repair shops and technicians to achieve OE-level diagnostics across various vehicle models.

Drive Diagnostics Beyond Limits

RLink Lite stands out with its extensive protocol support and wide vehicle coverage. Compatible with D-PDU, J2534, and RP1210 diagnostic standards, it seamlessly integrates with diverse protocols like DoIP, CAN, CAN FD, J1850, and K line. This ensures comprehensive coverage across various vehicle models, including big names like GM, Ford, Nissan, BMW, Porsche, VAG, and more.

Relays key status/position for VAG and Nissan

One-Stop Solution for OE-Level Diagnostics

RLink Lite presents a comprehensive solution with our proprietary DMS (Driver Management System). Effortlessly access a diverse range of drivers for seamless integration with OE software. Navigate with ease using built-in OEM operation guides to swiftly master OE software. Simplify the process with a single click to download and update drivers. TOPDON always stands by technicians every step of the way and prepares them for the challenges and opportunities that lie ahead.

Faster, Smoother

Unlock unparalleled diagnostic efficiency with RLink Lite, supporting high-speed DoIP diagnostics for faster data transmission during vehicle diagnostics and programming. Utilizing existing Ethernet networks, it introduces unmatched flexibility, making diagnostics in modern vehicles more convenient and free from the constraints of physical connections.

Easy and Intuitive Interface

The 5-inch LCD touchscreen features a user-friendly interface, providing a seamless and effortless experience. Users can navigate through operations with ease, maximizing the full range of its functionality.

TECHNICAL SPECIFICATIONS

Display: LCD 5-Inch, 854*480

CPU: 4-Core Processor, 1.8 GHz

OS: Android 11.0

RAM: 2G

ROM: 32G

Battery: 5000 mAh / 3.7V

Operating Voltage: 6~36V

Storage Temperature: -4℉ to 140℉

Working Temperature: 32℉ to 122℉

Dimensions: 7.80 x 4.25 x 1.65 inches

Protocols: SAE-J2534-1 & SAE-J2534-2 Pass-Thru; ISO 22900; MVCI & D-PDU; ISO 14229(UDS); ISO22901(ODX); ISO13400(-DOIP); SAE-J2610 SCI(Chrysler); ISO 15765(CAN); ISO 11898(DWCAN); ISO 14230(KWP2000); ISO 9141; J1850(VP_x0002_W/PWM); J2411(SWCAN); ISO 15765; J2740(GM ALDL); J2809(HONDA DIAG-H); J2818(KW81); J2819(TP16/TP20); FORD UBP; BMW DS2; CANFD

PACKING LIST

RLink Lite

6.5 Ft.OBD2 Diagnostic Cable

16 Ft. Network Cable

5 Ft. USB 2.0 Cable

12V DC Power Adapter

Quick User Guide

Carrying Case

Package Box

prop65 WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov

J2534 Pass-Thru

RLink Lite

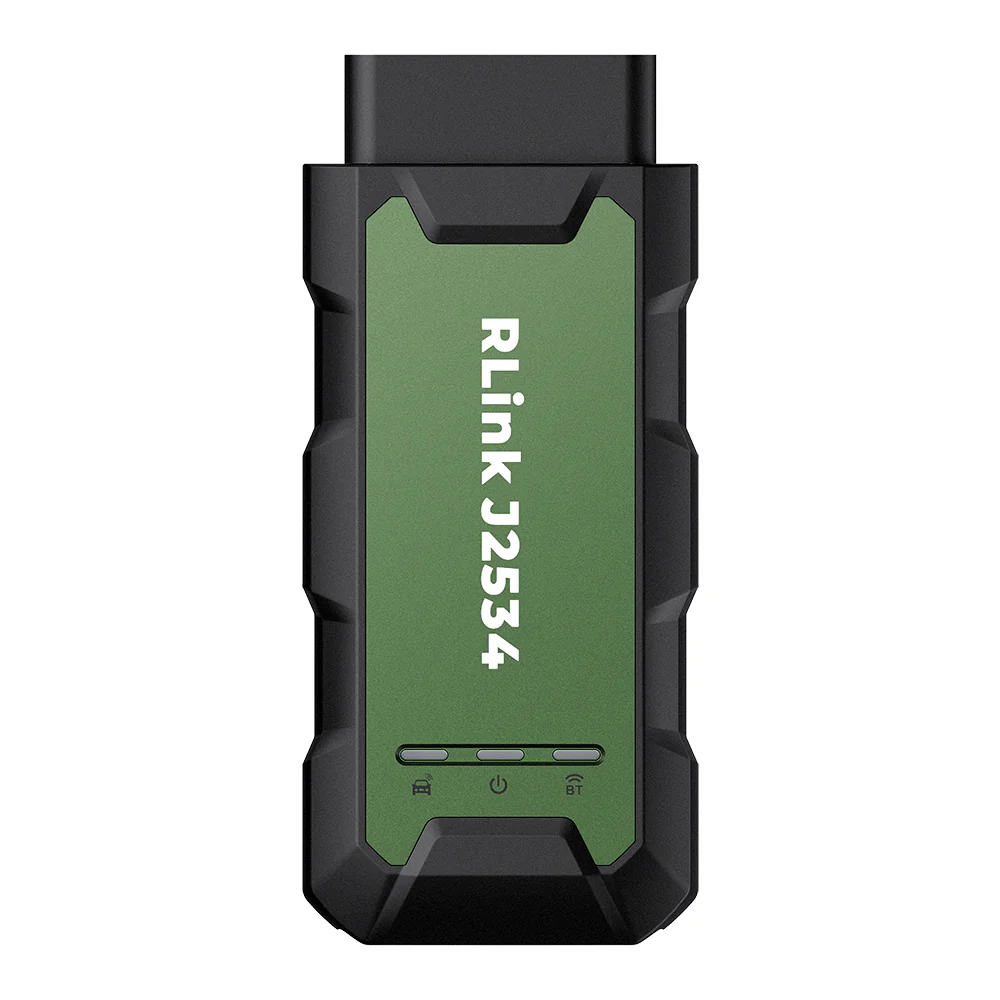

RLink J2534

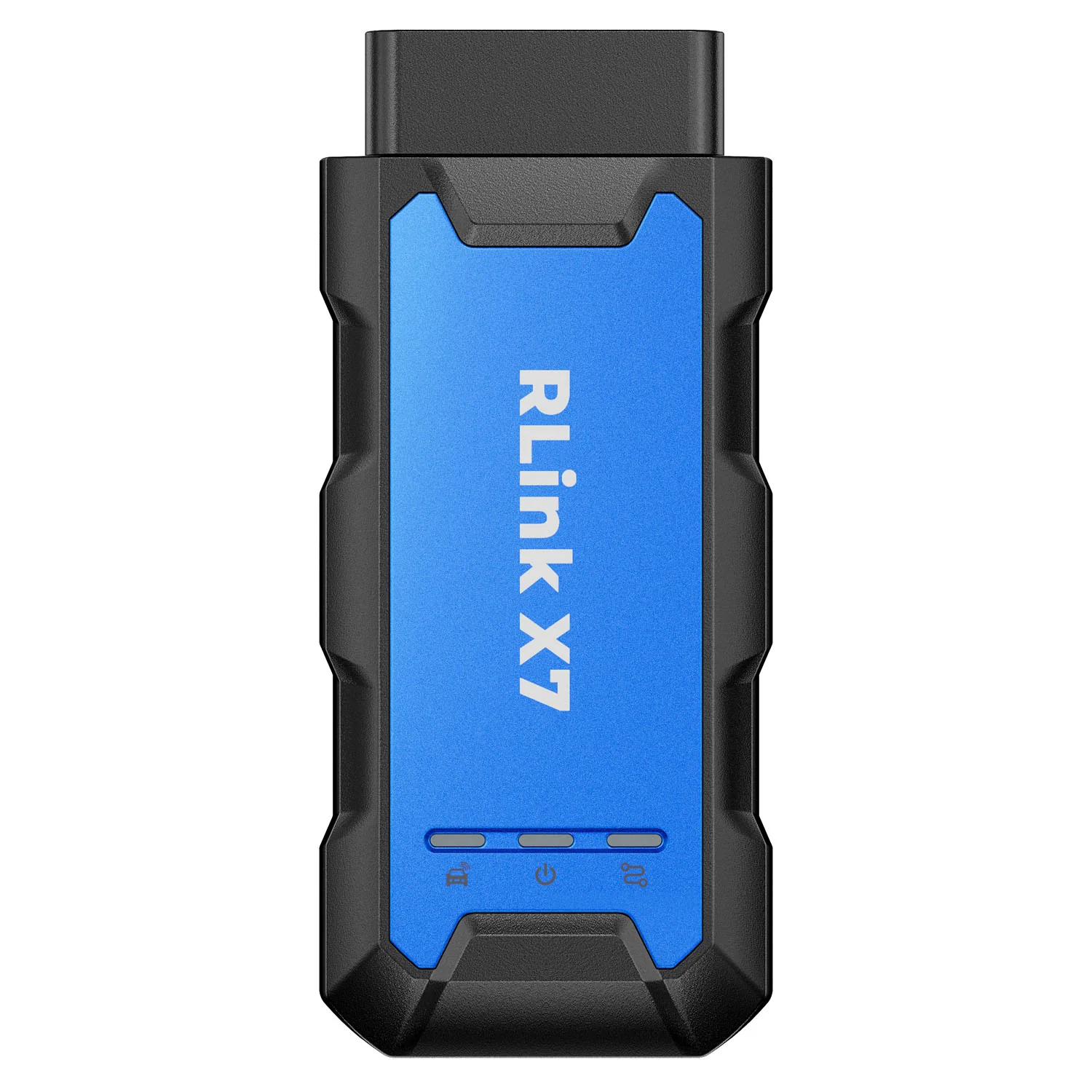

RLink X7

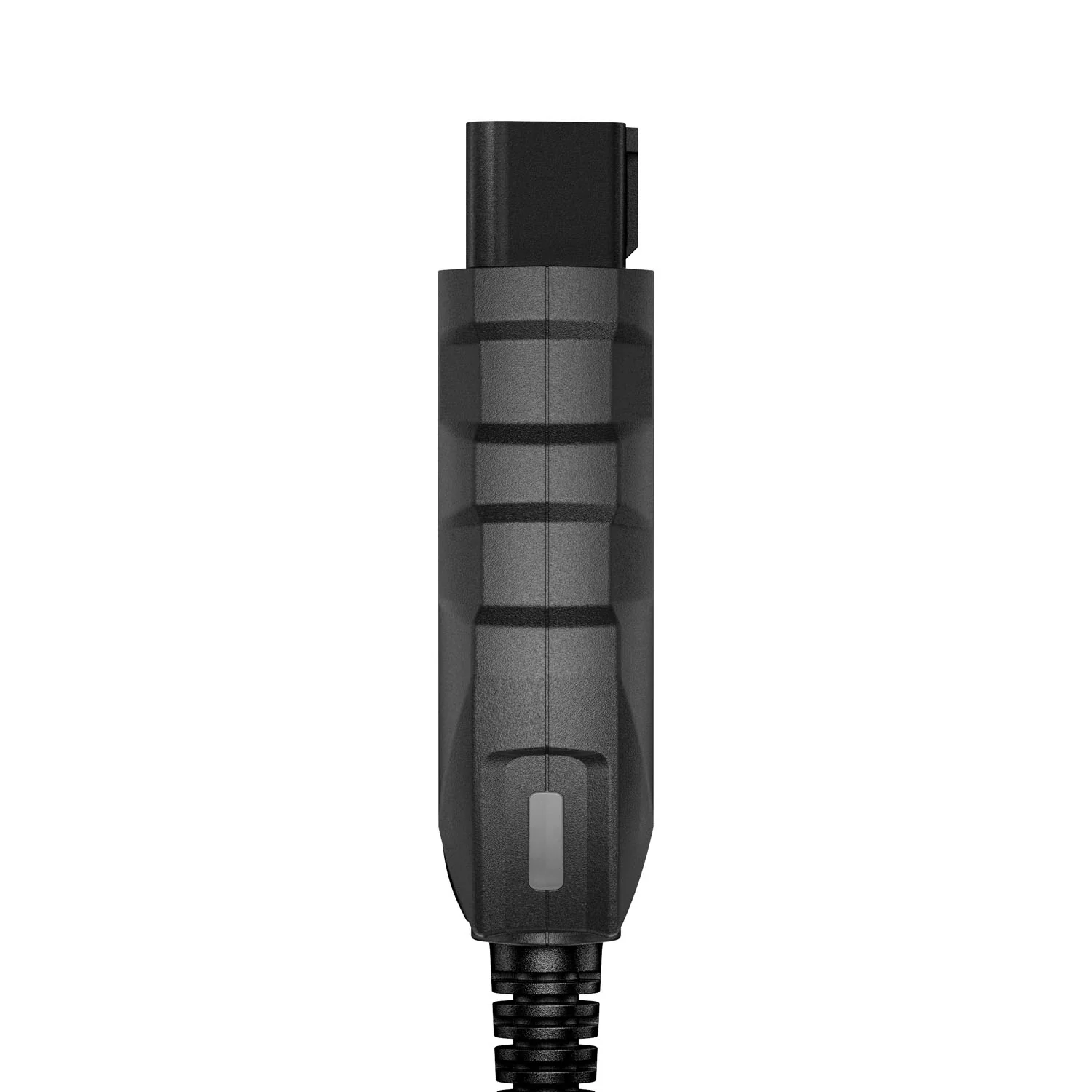

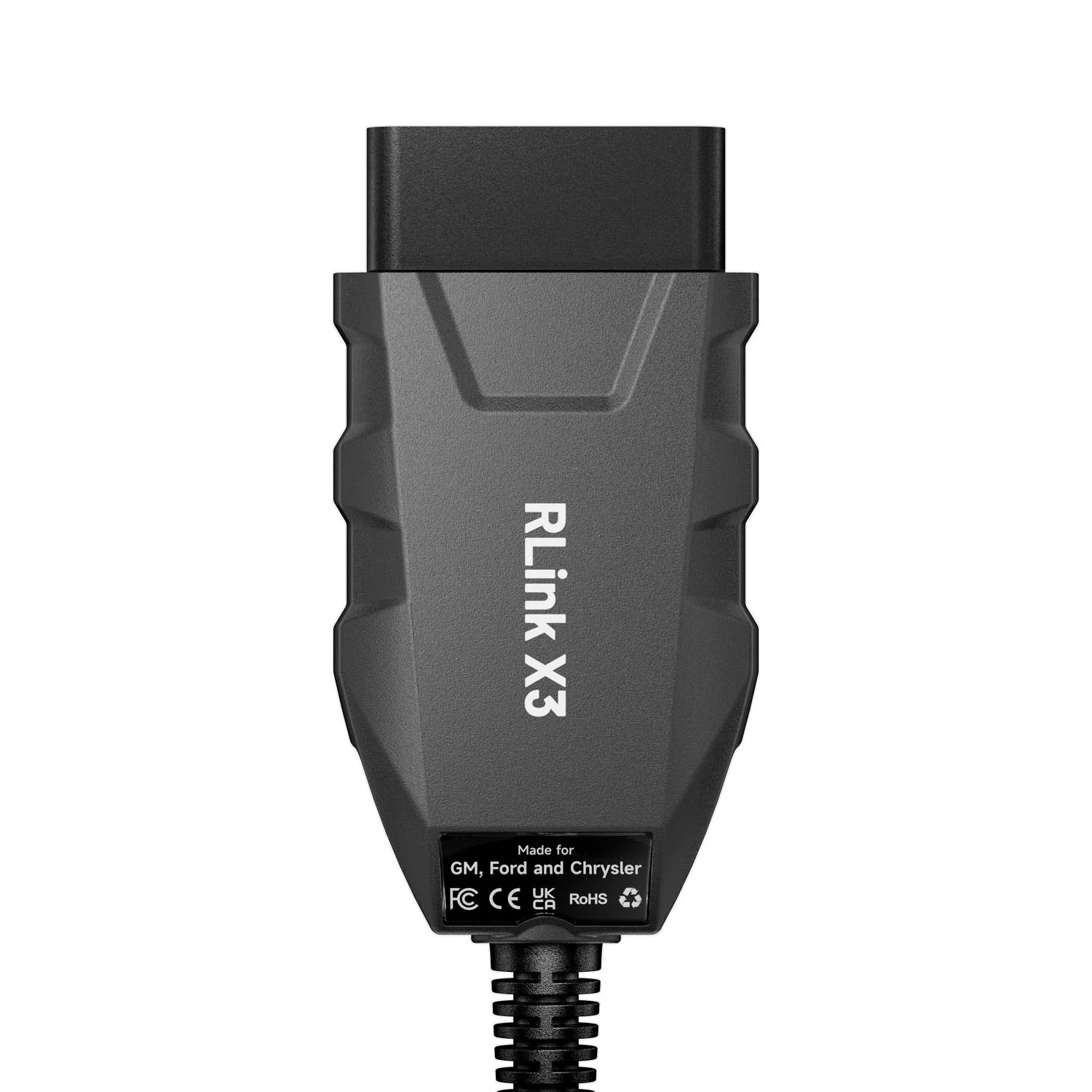

RLink X3
